The Benefits of Kernel PCovR for the WHO Dataset#

import numpy as np
from matplotlib import pyplot as plt
from scipy.stats import pearsonr
from sklearn.decomposition import PCA, KernelPCA
from sklearn.kernel_ridge import KernelRidge
from sklearn.linear_model import Ridge, RidgeCV
from sklearn.metrics import r2_score
from sklearn.model_selection import GridSearchCV, train_test_split

from skmatter.datasets import load_who_dataset
from skmatter.decomposition import KernelPCovR, PCovR
from skmatter.preprocessing import StandardFlexibleScaler

Load the Dataset#

df = load_who_dataset()["data"]
print(df)

           Country  Year  ...  SN.ITK.DEFC.ZS  NY.GDP.PCAP.CD
    Afghanistan  2005  ...            36.1      255.055120
    Afghanistan  2006  ...            33.3      274.000486
    Afghanistan  2007  ...            29.8      375.078128
    Afghanistan  2008  ...            26.5      387.849174
    Afghanistan  2009  ...            23.3      443.845151
...            ...   ...  ...             ...             ...
South Africa  2015  ...             5.2     6204.929901
South Africa  2016  ...             5.4     5735.066787
South Africa  2017  ...             5.5     6734.475153
South Africa  2018  ...             5.7     7048.522211
South Africa  2019  ...             6.3     6688.787271

[2020 rows x 12 columns]

columns = [
    "SP.POP.TOTL",
    "SH.TBS.INCD",
    "SH.IMM.MEAS",
    "SE.XPD.TOTL.GD.ZS",
    "SH.DYN.AIDS.ZS",
    "SH.IMM.IDPT",
    "SH.XPD.CHEX.GD.ZS",
    "SN.ITK.DEFC.ZS",
    "NY.GDP.PCAP.CD",
]

X_raw = np.array(df[columns])

Below, we take the logarithm of the population and GDP to avoid extreme distributions

log_scaled = ["SP.POP.TOTL", "NY.GDP.PCAP.CD"]
for ls in log_scaled:
    print(X_raw[:, columns.index(ls)].min(), X_raw[:, columns.index(ls)].max())
    if ls in columns:
        X_raw[:, columns.index(ls)] = np.log10(X_raw[:, columns.index(ls)])
y_raw = np.array(df["SP.DYN.LE00.IN"])
y_raw = y_raw.reshape(-1, 1)
X_raw.shape

149841.0 7742681934.0
110.460874721483 123678.70214327476

(2020, 9)

Scale and Center the Features and Targets#

x_scaler = StandardFlexibleScaler(column_wise=True)
X = x_scaler.fit_transform(X_raw)

y_scaler = StandardFlexibleScaler(column_wise=True)
y = y_scaler.fit_transform(y_raw)

n_components = 2

X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.3, shuffle=True, random_state=0
)

Train the Different Linear DR Techniques#

Below, we obtain the regression errors using a variety of linear DR techniques.

Linear Regression#

RidgeCV(cv=5, alphas=np.logspace(-8, 2, 20), fit_intercept=False).fit(
    X_train, y_train
).score(X_test, y_test)

0.8548848257886271

PCovR#

pcovr = PCovR(
    n_components=n_components,
    regressor=Ridge(alpha=1e-4, fit_intercept=False),
    mixing=0.5,
    random_state=0,
).fit(X_train, y_train)
T_train_pcovr = pcovr.transform(X_train)
T_test_pcovr = pcovr.transform(X_test)
T_pcovr = pcovr.transform(X)

r_pcovr = Ridge(alpha=1e-4, fit_intercept=False, random_state=0).fit(
    T_train_pcovr, y_train
)
yp_pcovr = r_pcovr.predict(T_test_pcovr).reshape(-1, 1)

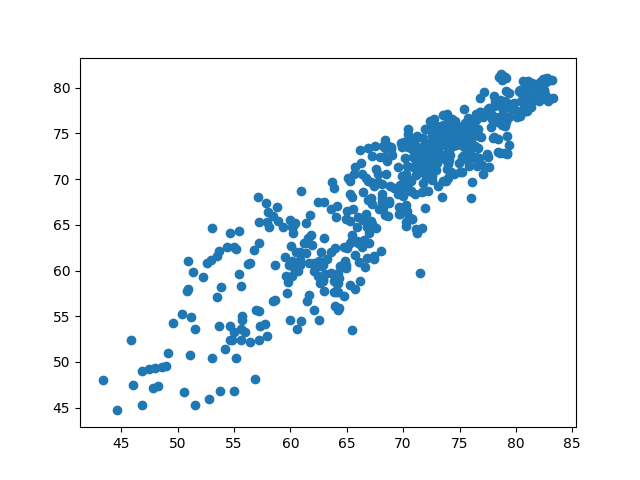

plt.scatter(y_scaler.inverse_transform(y_test), y_scaler.inverse_transform(yp_pcovr))
r_pcovr.score(T_test_pcovr, y_test)

/home/docs/checkouts/readthedocs.org/user_builds/scikit-matter/envs/254/lib/python3.13/site-packages/skmatter/decomposition/_pcov.py:60: UserWarning: This class does not automatically center data, and your data mean is greater than the supplied tolerance.
  warnings.warn(

0.8267220275787428

PCA#

pca = PCA(
    n_components=n_components,
    random_state=0,
).fit(X_train, y_train)
T_train_pca = pca.transform(X_train)
T_test_pca = pca.transform(X_test)
T_pca = pca.transform(X)

r_pca = Ridge(alpha=1e-4, fit_intercept=False, random_state=0).fit(T_train_pca, y_train)
yp_pca = r_pca.predict(T_test_pca).reshape(-1, 1)

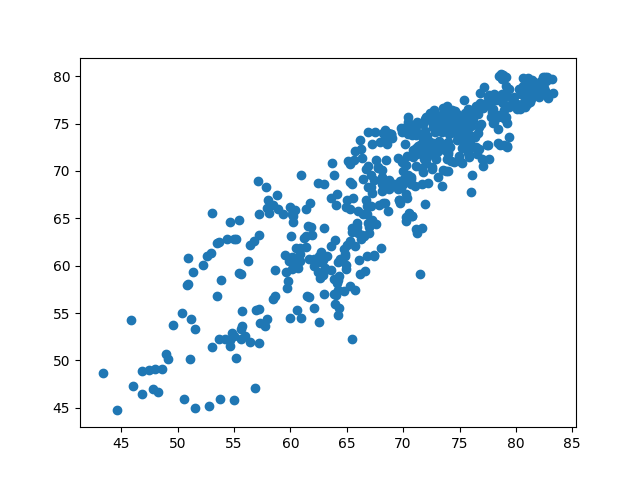

plt.scatter(y_scaler.inverse_transform(y_test), y_scaler.inverse_transform(yp_pca))
r_pca.score(T_test_pca, y_test)

0.8041174131375703

for c, x in zip(columns, X.T):
    print(c, pearsonr(x, T_pca[:, 0])[0], pearsonr(x, T_pca[:, 1])[0])

SP.POP.TOTL -0.22694404485361075 -0.37777435939406867
SH.TBS.INCD -0.62492871770987 0.6316215151702461
SH.IMM.MEAS 0.842586228381343 0.13606904827472582
SE.XPD.TOTL.GD.ZS 0.41457342404840164 0.610085482397125
SH.DYN.AIDS.ZS -0.32609330543030934 0.849929626066215
SH.IMM.IDPT 0.8422637385674646 0.16339769662915138
SH.XPD.CHEX.GD.ZS 0.4590012089554525 0.3068630393788183
SN.ITK.DEFC.ZS -0.8212324937958551 0.05510883584395192
NY.GDP.PCAP.CD 0.8042167907410394 0.06566227478694814

Train the Different Kernel DR Techniques#

Below, we obtain the regression errors using a variety of kernel DR techniques.

Select Kernel Hyperparameters#

In the original publication, we used a cross-validated grid search to determine the best hyperparameters for the kernel ridge regression. We do not rerun this expensive search in this example but use the obtained parameters for gamma and alpha. You may rerun the calculation locally by setting recalc=True.

recalc = False

if recalc:
    param_grid = {"gamma": np.logspace(-8, 3, 20), "alpha": np.logspace(-8, 3, 20)}

    clf = KernelRidge(kernel="rbf")
    gs = GridSearchCV(estimator=clf, param_grid=param_grid)
    gs.fit(X_train, y_train)

    gamma = gs.best_estimator_.gamma
    alpha = gs.best_estimator_.alpha
else:
    gamma = 0.08858667904100832
    alpha = 0.0016237767391887243

kernel_params = {"kernel": "rbf", "gamma": gamma}

Kernel Regression#

KernelRidge(**kernel_params, alpha=alpha).fit(X_train, y_train).score(X_test, y_test)

0.9726524136785976

KPCovR#

kpcovr = KernelPCovR(
    n_components=n_components,
    regressor=KernelRidge(alpha=alpha, **kernel_params),
    mixing=0.5,
    **kernel_params,
).fit(X_train, y_train)

T_train_kpcovr = kpcovr.transform(X_train)
T_test_kpcovr = kpcovr.transform(X_test)
T_kpcovr = kpcovr.transform(X)

r_kpcovr = KernelRidge(**kernel_params).fit(T_train_kpcovr, y_train)
yp_kpcovr = r_kpcovr.predict(T_test_kpcovr)

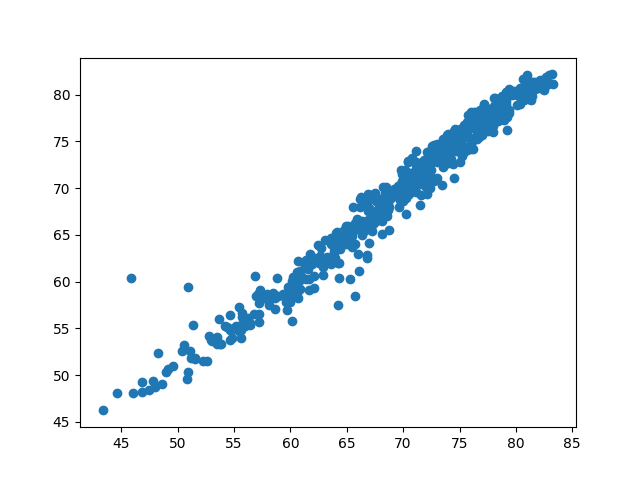

plt.scatter(y_scaler.inverse_transform(y_test), y_scaler.inverse_transform(yp_kpcovr))
r_kpcovr.score(T_test_kpcovr, y_test)

0.9701003539459904

KPCA#

kpca = KernelPCA(n_components=n_components, **kernel_params, random_state=0).fit(
    X_train, y_train
)

T_train_kpca = kpca.transform(X_train)
T_test_kpca = kpca.transform(X_test)
T_kpca = kpca.transform(X)

r_kpca = KernelRidge(**kernel_params).fit(T_train_kpca, y_train)
yp_kpca = r_kpca.predict(T_test_kpca)

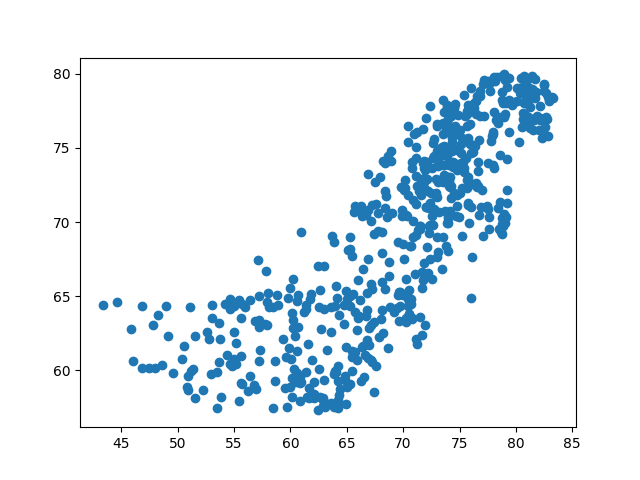

plt.scatter(y_scaler.inverse_transform(y_test), y_scaler.inverse_transform(yp_kpca))
r_kpca.score(T_test_kpca, y_test)

0.6661226058827717

Correlation of the different variables with the KPCovR axes#

for c, x in zip(columns, X.T):
    print(c, pearsonr(x, T_kpcovr[:, 0])[0], pearsonr(x, T_kpcovr[:, 1])[0])

SP.POP.TOTL 0.0732010948675843 0.03969226130200647
SH.TBS.INCD 0.6836177728807142 -0.05384746771297522
SH.IMM.MEAS -0.6604939713031847 0.047519698516802246
SE.XPD.TOTL.GD.ZS -0.2300978893002727 -0.36227488660044016
SH.DYN.AIDS.ZS 0.5157981075022178 -0.11701327000198024
SH.IMM.IDPT -0.6449500965013705 0.052622267817331356
SH.XPD.CHEX.GD.ZS -0.3801993556012571 -0.5736426627629702
SN.ITK.DEFC.ZS 0.7301250686596852 0.04793454286890161
NY.GDP.PCAP.CD -0.8228660097330253 -0.49386365697253587

Plot Our Results#

fig, axes = plt.subplot_mosaic(
    """
                                AFF.B
                                A.GGB
                                .....
                                CHH.D
                                C.IID
                                .....
                                EEEEE
                                """,
    figsize=(7.5, 7.5),
    gridspec_kw=dict(
        height_ratios=(0.5, 0.5, 0.1, 0.5, 0.5, 0.1, 0.1),
        width_ratios=(1, 0.1, 0.2, 0.1, 1),
    ),
)
axPCA, axPCovR, axKPCA, axKPCovR = axes["A"], axes["B"], axes["C"], axes["D"]
axPCAy, axPCovRy, axKPCAy, axKPCovRy = axes["F"], axes["G"], axes["H"], axes["I"]


def add_subplot(ax, axy, T, yp, let=""):
    """Adding a subplot to a given axis."""
    p = ax.scatter(-T[:, 0], T[:, 1], c=y_raw, s=4)
    ax.set_xticks([])
    ax.set_yticks([])
    ax.annotate(
        xy=(0.025, 0.95), xycoords="axes fraction", text=f"({let})", va="top", ha="left"
    )
    axy.scatter(
        y_scaler.inverse_transform(y_test),
        y_scaler.inverse_transform(yp),
        c="k",
        s=1,
    )
    axy.plot([y_raw.min(), y_raw.max()], [y_raw.min(), y_raw.max()], "r--")
    axy.annotate(
        xy=(0.05, 0.95),
        xycoords="axes fraction",
        text=r"R$^2$=%0.2f" % round(r2_score(y_test, yp), 3),
        va="top",
        ha="left",
        fontsize=8,
    )
    axy.set_xticks([])
    axy.set_yticks([])
    return p


p = add_subplot(axPCA, axPCAy, T_pca, yp_pca, "a")
axPCA.set_xlabel("PC$_1$")
axPCA.set_ylabel("PC$_2$")

add_subplot(axPCovR, axPCovRy, T_pcovr @ np.diag([-1, 1]), yp_pcovr, "b")
axPCovR.yaxis.set_label_position("right")
axPCovR.set_xlabel("PCov$_1$")
axPCovR.set_ylabel("PCov$_2$", rotation=-90, va="bottom")

add_subplot(axKPCA, axKPCAy, T_kpca @ np.diag([-1, 1]), yp_kpca, "c")
axKPCA.set_xlabel("Kernel PC$_1$", fontsize=10)
axKPCA.set_ylabel("Kernel PC$_2$", fontsize=10)

add_subplot(axKPCovR, axKPCovRy, T_kpcovr, yp_kpcovr, "d")
axKPCovR.yaxis.set_label_position("right")
axKPCovR.set_xlabel("Kernel PCov$_1$", fontsize=10)
axKPCovR.set_ylabel("Kernel PCov$_2$", rotation=-90, va="bottom", fontsize=10)

plt.colorbar(
    p, cax=axes["E"], label="Life Expectancy [years]", orientation="horizontal"
)
fig.subplots_adjust(wspace=0, hspace=0.4)
fig.suptitle(
    "Linear and Kernel PCovR for Predicting Life Expectancy", y=0.925, fontsize=10
)
plt.show()

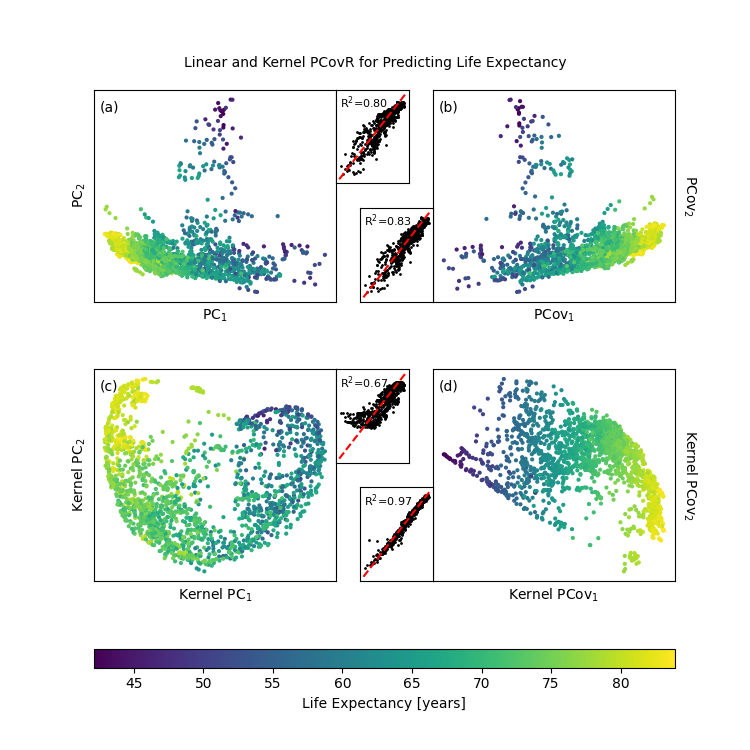

Linear and Kernel PCovR for Predicting Life Expectancy
